Interactive Look At

This template was originally released as part of Lens Studio 1.0. Since then, significant improvement has been made to Lens Studio to provide better ways of achieving the same result as this template. Take a look at the updated Animated Objects Template to achieve the same effect as this template! Alternatively, you can download the legacy template from the Asset Library.

Building off of the Animated Object Template, the Interactive Look At Template allows you to add 3D animated content to the world. When the user looks at the object, it plays an additional animation. The template gives you access to manipulation control which allows the user to move, scale and rotate the object.

Tutorial​

Guide​

Exporting 3D Content​

The Interactive Look At Template assumes that you have a 3D animated object which you'll be importing into Lens Studio. First you must export your object to be Lens Studio ready. To do this, follow the 3D Object Export guide.

The Interactive Look At Template needs two layers of animation in the exported FBX. To learn more about how to prepare multiple animation layers, follow the Maya Export guide. If your 3D tool does not support animation layers, you can create Animation Clips inside Lens Studio. Follow the Playing 3D Animation guide's Animation Clip section for information on how to create Animation Clips.

Importing 3D Content​

Once you have your 3D object exported, follow the 3D Object Import guide to import your 3D object into Lens Studio.

Linking the World Object​

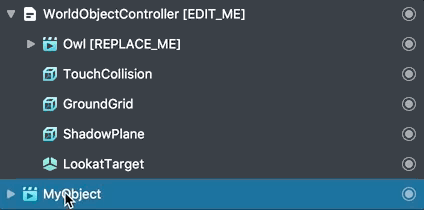

After importing, the 3D object will be automatically included in the Objects panel and should also be visible in the Scene panel. Next, you'll want to drag your newly imported object to be a child of the WorldObjectController object. You can now delete the template's placeholder object labeled with [REPLACE_ME].

Interactive Look At Template

Linking the Animation​

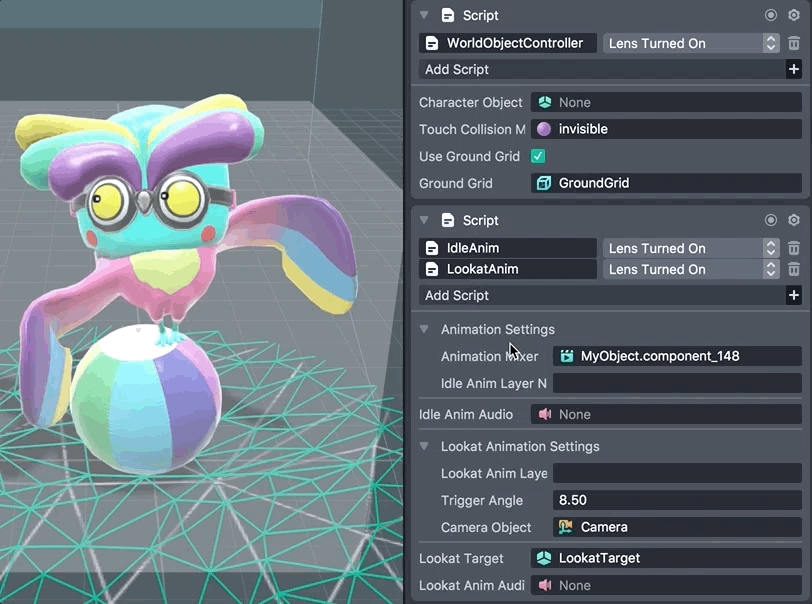

Next, we need to link the imported object's AnimationMixer component to the IdleAnim script. Select the WorldObjectController object and open the Inspector panel. Find the IdleAnim script and link the Animation Mixer field to your model's animation mixer.

Interactive Look At Template

Setting the Animation Names​

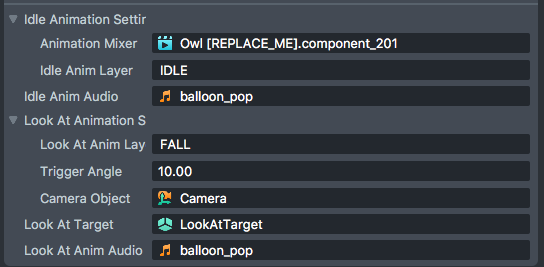

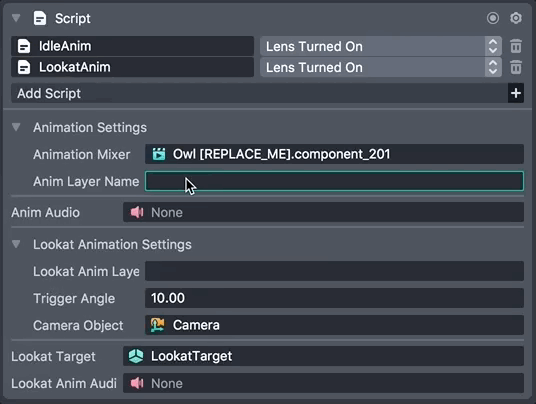

When using multiple animations in a single FBX, they will be imported into Lens Studio as Animation Layers. These layers can be used to define the additional animations that will play on interaction. For the Interactive Look At Template, set the Idle Anim Layer field to the layer name of your looping idle animation. Then, set the Look At Anim Layer field to the layer name of your look at animation which will play when the object is looked at.

Interactive Look At Template

Tuning the Collision​

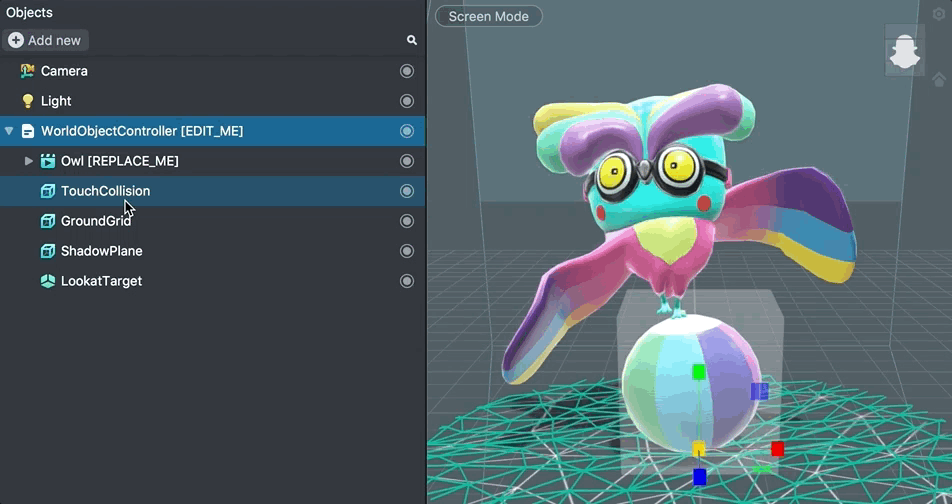

The TouchCollision object represents the area the user must touch to manipulate (scale, move and rotate) the object. In the Objects panel, select the TouchCollision object and scale it to roughly match the size of your 3D object.

Interactive Look At Template

Adding the Shadow​

If you want to add a real-time shadow to your experience, first select your 3D object in the Objects panel. Find the object(s) with the Mesh Visual component. In the Inspector panel, set the Shadow Mode drop down to Caster. Here, you're also able to tune the shadow's intensity via the Shadow Density slider.

Audio​

You can add audio to your animation by importing an audio file into the Resources panel and referencing it in the IdleAnim.js and LookatAnim.js scripts (found on the WorldObjectController object). We recommend using a mono channel mp3 to keep the lens size low. For more information on Audio, see the Audio guide.

Previewing Your Lens​

You're now ready to preview your world Lens. To preview your Lens in Snapchat, follow the Pairing to Snapchat guide.

Script Interface​

WorldObjectController.js​

  • Use Ground Grid (bool) - When enabled, a circular grid will appear underneath the world object when the user touches the object. This grid helps visualize the surface the content is attached to. Setting to false will disable the ground grid visualization

  • Touch Collision Material (Asset.Material) - The material used by the touch collision mesh. In Lens Studio's scene panel, the mesh is visualized with a semi transparent material. When running in Lenses, this material is made invisible

  • Ground Grid (SceneObject) - A reference to the ground grid object

IdleAnim.js​

  • Animation Mixer (Component.AnimationMixer) - A reference to the world object's Animation Mixer component

  • Idle Anim Layer (string) - The name of the anim layer that should be played for the idle animation. The anim layer name is configured in your external 3D editor. The anim layer name is also listed in the object's Animation Mixer component

  • Anim Audio (Asset.AudioTrackAsset) - A reference to an Audio Track Asset in your resources. If set, the inputted audio will play alongside your animation

LookAtAnim.js​

  • Look At Anim Layer (string) - The name of the anim layer that should be played when a user looks at the object within a specified angle. The anim layer name is configured in your external 3D editor. The anim layer name is also listed in the object's Animation Mixer component

  • Trigger Angle (float) - This value defines the angle in which a user must look at the object to trigger the look at animation. The object will return the to idle animation when the user looks away

  • Camera Object (SceneObject) - This is a reference to the active camera in the scene. It's used to calculate the viewing angle from the user to the animated object

  • Look At Target (SceneObject) - This is an optional field. This represents center point of the object and is used to when calculating the look at angle. If not set, the WorldObjectController object's position is used

  • Look At Anim Audio (Asset.AudioTrackAsset) - A reference to an Audio Track Asset in your resources. If set, the inputted audio will play alongside your animation when the object is looked at
