Architecture

Typical UI Kit Element Architecture

UI Kit components are often a combination of a Visual and an Element. The Visual is the graphical representation of the component, while the Element is the logic for the component. The Element handles stuff like creating the underlying Colliders and Interactables, and hooks into SIK events to handle interactions. The Visual handles animations based on events from the Element. The combination of the two is called a VisualElement. The VisualElement fuses the Visual and the Element together, and handles the connections between the two sides.

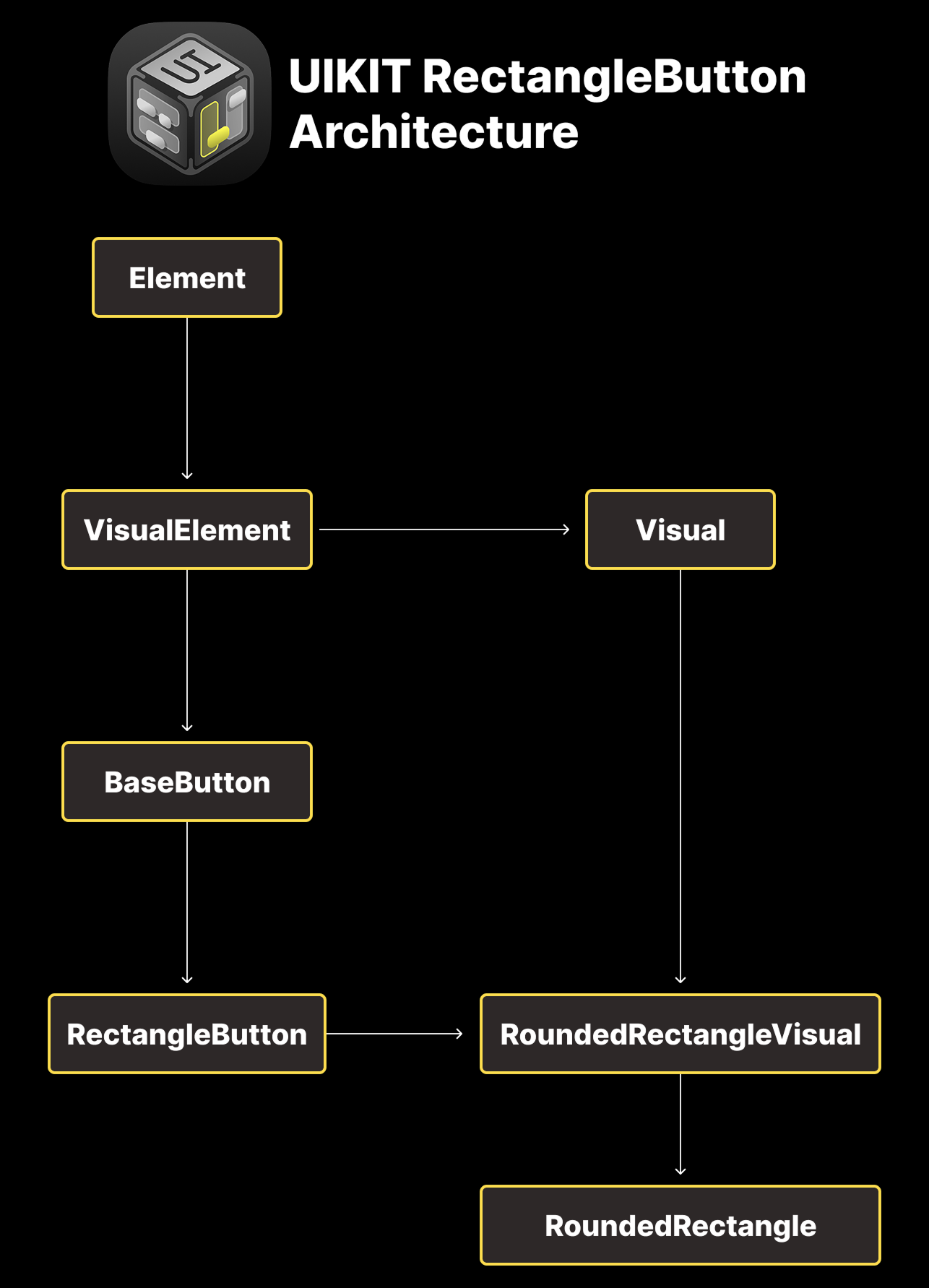

The following diagram outlines the typical architecture of a UI Kit element by using a RectangleButton as an example. Here you can see that the VisualElement for a button is called a BaseButton. The RectangleButton is a specific instance of a BaseButton that creates a RoundedRectangleVisual as a default.
