Turn Based

Turn Based is a component for building turn-based game flows using Snapchat's Turn Based Dynamic Response API. It enables two-player, asynchronous Lenses where users take sequential actions and share game state between turns.

Turn Based Lens

This feature doe not support image/texture transfer.

To use a published Turn Based Lens with other users, you must set the visibility of the Lens to Public.

The Turn Based component extends the standard Dynamic Response system to support back-and-forth responses for turn-based games and experiences:

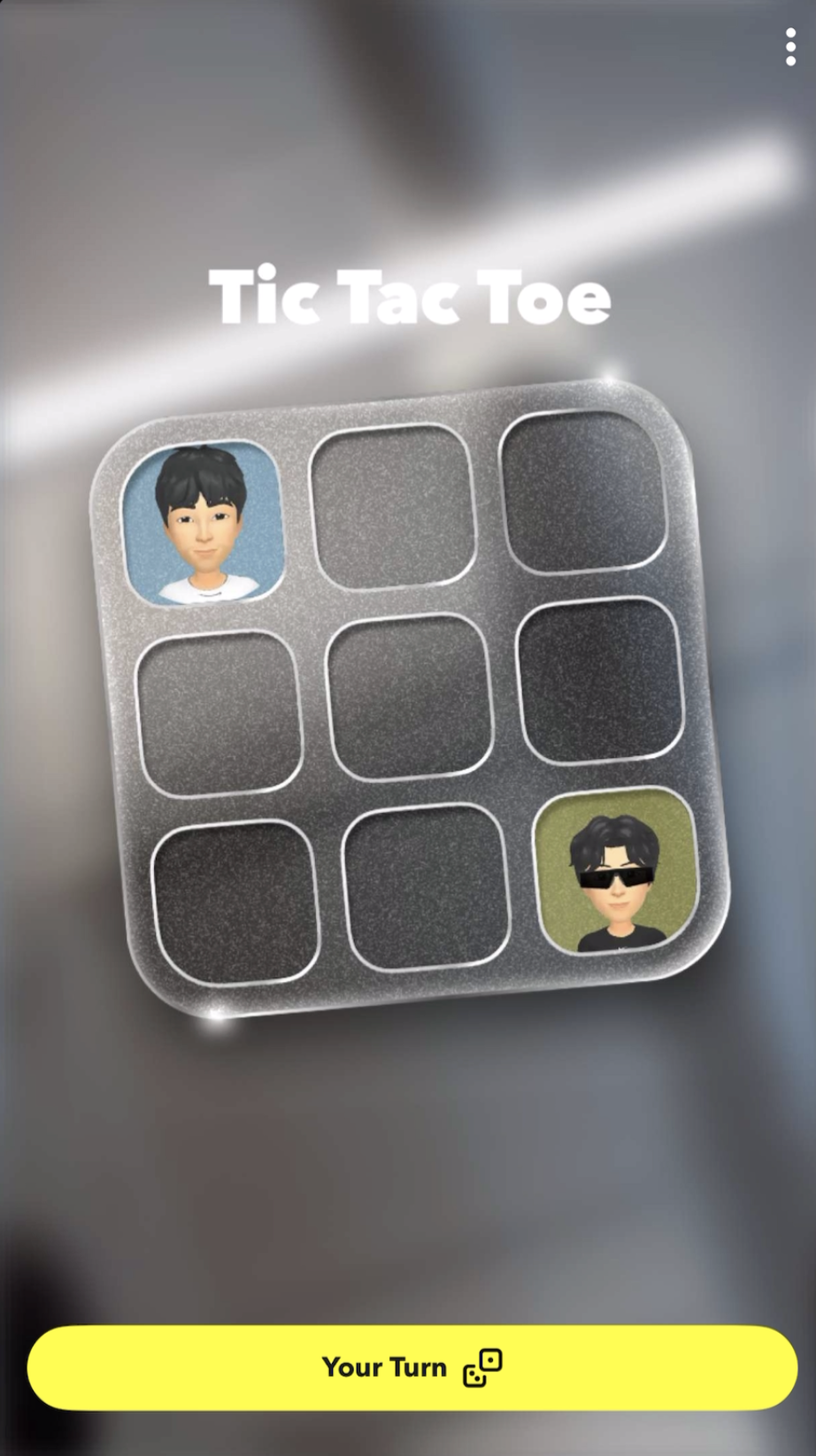

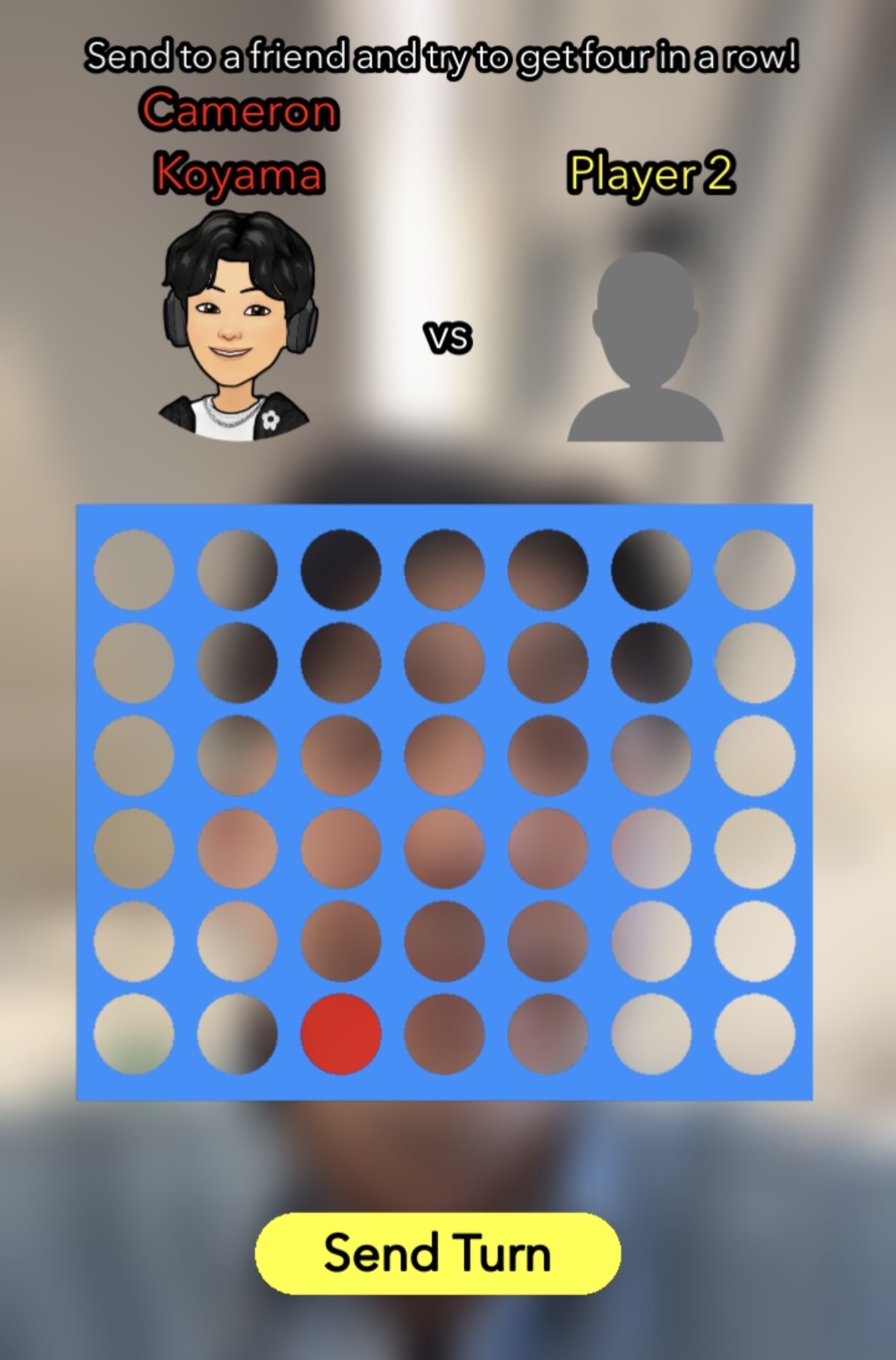

1. User 1 opens the Lens with the Turn Based component and begins the session. On the initial turn, they make a move that sets the turn data. When the turn is complete they must capture a Snap, and send it to User 2.

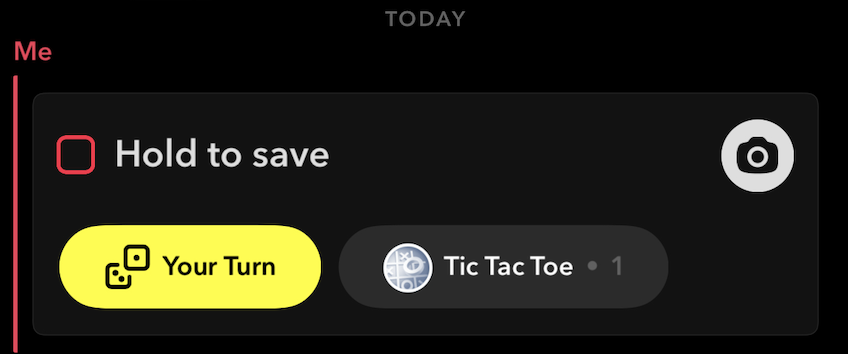

2. User 2 receives the Snap, taps a Tappable Area or the Your Turn CTA to enter the Lens.
3. User 2 loads the turn data to set the current state of the game. They make their move, set the turn data, take a Snap, and send it back to User 1.
4. The game alternates until the turn limit is reached or the Lens logic ends the game using setIsFinalTurn(true).

Unlike standard Dynamic Response (one-way data), Turn Based creates a bidirectional loop where each user's turn becomes the starting state for the next. Game state, turn history, and user data are serialized and transferred via associatedData.

The component handles turn management, data serialization, user role detection, and scene object toggling—so you can focus on game logic instead of the underlying Dynamic Response plumbing.

Common use cases include:

• Word games – players take turns adding letters or words
• Strategy games – chess, checkers, or custom board games
• Quiz games – players answer questions in sequence
• Puzzle games – build or solve puzzles together

Turn Data

Turn data lets Lenses share interactive state across Snaps. It's serialized automatically and passed using associatedData.

Turn data includes:

• tappableAreas – Array of tappable areas; each entry has a key and a Screen Transform. Disabled transforms are skipped.
• globalVariables – Persistent variables shared by both user.
• userVariables – Persistent variables scoped to a specific user index (0 or 1).
• turnVariables – Temporary variables you set this turn to pass to the next user.
• previousTurnVariables – Temporary variables from the prior turn.
• turnHistory – Historical record of previous turns (if enabled).

Understanding Data Flow

Data can propagate in several ways: Global Storage, User Storage, and Turn Variables.

It is recommended to primarily use Global and User Storage/Variables for game data as it is persistent. Turn Variables are temporary variables you set in a single turn to pass to the next user.

• Global Storage: Per-session key/value storage shared by both users. Use getGlobalVariable(key) and setGlobalVariable(key, value) for shared data. For example, round number, game rules, or game state.

• User Storage: Per-session key/value storage scoped to a specific user index (0 or 1). Use getUserVariable(userIndex, key) and setUserVariable(userIndex, key, value) (or getCurrentUserVariable() / setCurrentUserVariable() and getOtherUserVariable() / setOtherUserVariable()) for per-user data like scores or selections.

• Turn Variables: During your turn, set values with setCurrentTurnVariable(). When a Snap is taken, these values are sent and will become the next user's previous turn variables. If requireTurnSubmission is enabled, calling endTurn() seals the data early so it can't be modified before a Snap.

  • Previous Turn Variables: When your turn begins, you receive previous turn variables, the temporary data the other user sent. Inspect with getPreviousTurnVariable() or getPreviousTurnVariables().

• Passing Data Forward: Previous turn variables are read-only and don't persist automatically. If you want them available next turn, copy them into current turn variables explicitly or alternatively use Global Variables.

Turn variables do not persist by themselves. To persist a value, read it with getPreviousTurnVariable() and write it back with setCurrentTurnVariable().

Installing the Component

The Turn Based Custom Component is available in the Asset Library. Press Install/Update, then add it to the Asset Browser via the + button by searching for "Turn Based".

Basic Setup

1. Add the Turn Based component to a Scene Object (or drag it into the Scene Hierarchy from the Asset Browser).
2. Configure component inputs: turn limit, tappable areas, and turn variables.
3. Call the component API from your game logic to control flow.

Component Inputs

Game Configuration

Input	Description

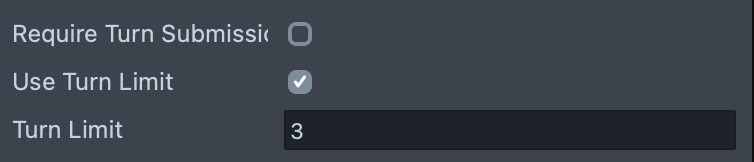

Require Turn Submission	If true, emits onError for incomplete turn data. Call endTurn() to mark data as complete.

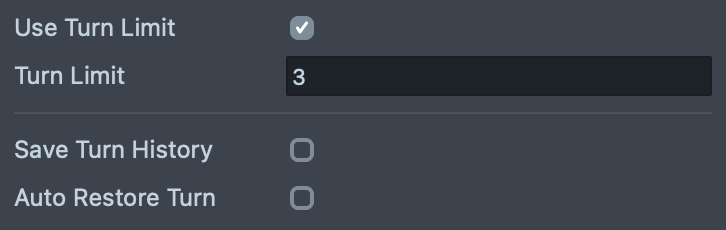

Use Turn Limit	If true, enables a maximum number of turns for the session. The game ends when the limit is exceeded.
Turn Limit	Max number of turns (used if Use Turn Limit is enabled).
Save Turn History	If true, turn history data is serialized.
Turns Saved Limit	Max number of entries stored in turn history.
Turn Variables	Array of initial variables for turn data storage.

Interactive Areas and Scene Objects

Input	Description

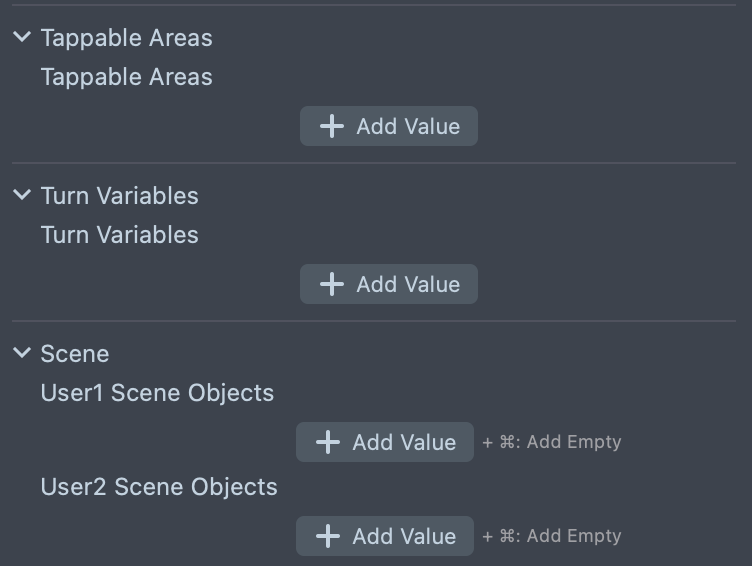

Tappable Areas	Array of tappable areas consisting of key and Screen Transform. Disabled areas are skipped.
User 1 Scene Objects	Scene objects enabled for User 1's turn.
User 2 Scene Objects	Scene objects enabled for User 2's turn.
Game Over Scene Objects	Scene objects shown when the game ends (if Require Turn Submission is enabled).
On Turn Start Responses	Configurable Component API or Behavior responses triggered when a turn starts.
On Turn End Responses	Configurable Component API or Behavior responses triggered when a turn ends.
On Game Over Responses	Configurable Component API or Behavior responses triggered when the game ends.

Tappable Areas limitations Excess tappable areas or values outside these limits are skipped:

• Max tappable areas sent: 16
• Max total screen coverage by tappable areas: 0.4
• Max key length: 24 characters
• Center position limits (screen coords): 0.05 < x < 0.95, 0.05 < y < 0.95
• Min aspect ratio (min side / max side): 0.125

Debug Settings

Input	Description
Debug Mode	Choose: None, Single Turn, or Simulate Turns.
Tapped Key	Key of tappable area for testing in editor.
Reset Simulate Turns	Reset the simulated game session in editor (Simulate Turns mode).
Turn Count	Turn count for debug (Single Turn mode).
Test Data Type	Input type for test data: JSON String or Studio Inputs (Single Turn mode).
Test Is Turn Complete	Marks the editor turn as complete (Single Turn mode).
Test Data	Debug previous turn variables input (Single Turn mode).
Test Turn History	Debug turn history input (Single Turn mode).
Print Logs	If true, prints debug logs.
Logger Settings	Configure on-screen/console logger (font size, levels). Visible if Print Logs is enabled.
Show Debug View	Displays a real-time overlay with current game state.

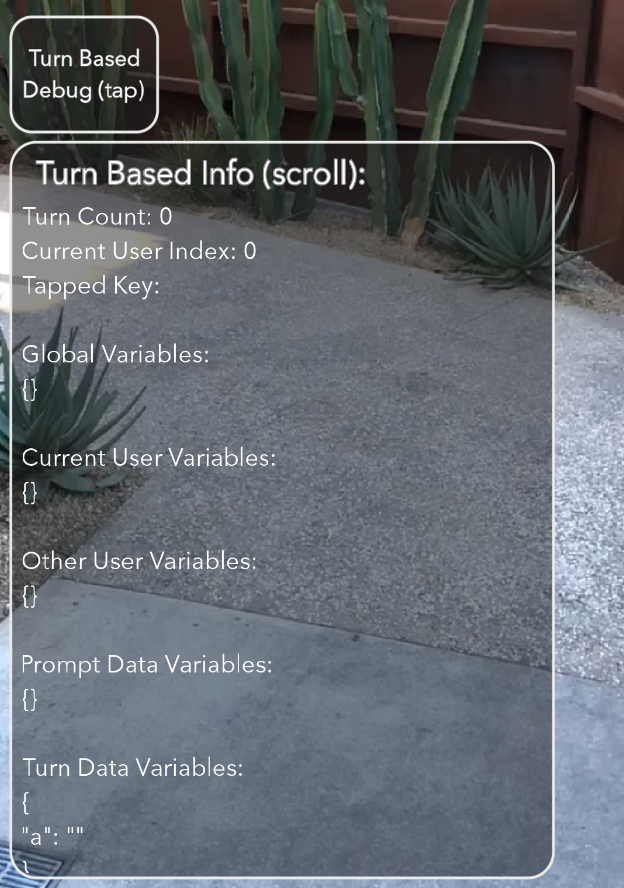

Enable Show Debug View to see a live overlay of current user, turn count, tapped key, variables, and tappable areas.

Component API

Methods

Method	Return Type	Description
getCurrentUserIndex()	Promise<number>	Returns index of current user, starting from 0.
getTappedKey()	string	Key of tappable area tapped before the Lens opened. Empty string if none.
addTappableArea(key: string, screenTransform: ScreenTransform)	void	Add a tappable area described by Screen Transform with a key.
removeTappableArea(key: string)	void	Remove a tappable area by key.
clearTappableAreas()	void	Clear all tappable areas.
getTurnCount()	Promise<number>	Current turn count, starting from 0.
getPreviousTurnVariable(key: string)	Promise<UserDefinedGameVariable | undefined>	Get a previous turn variable by key. UserDefinedGameVariable is number, string, boolean, or a dictionary/array of these.
getPreviousTurnVariables()	Promise<UserDefinedGameVariablesMap>	Get previous turn variables (data received with the Snap) as a dictionary. Empty {} on the first turn.
getCurrentTurnVariable(key: string)	UserDefinedGameVariable | undefined	Get the current turn variable (data to be sent). If value is an object/array, call setCurrentTurnVariable after updating it to ensure changes are handled.
setCurrentTurnVariable(key: string, value: UserDefinedGameVariable)	void	Set a current turn variable.
endTurn()	void	Marks the turn as complete if requireTurnSubmission is enabled. Changes aren't allowed afterward.
setIsFinalTurn(isFinalTurn: boolean)	void	Marks the current turn as the last in the session when true.
isFinalTurn()	Promise<boolean>	Returns true if the current turn is the final turn (limit reached or manually set).
getCurrentUserDisplayName()	Promise<string>	Get the current user's display name.
getOtherUserDisplayName()	Promise<string>	Get the other user's display name.
getTurnHistory()	Promise<TurnHistoryEntry[]>	Get an array of recent turn history entries ordered by turn count. Empty on the first turn. The last entry always matches previous turn variables. TurnHistoryEntry: turnCount: number; userDefinedGameVariables: UserDefinedGameVariablesMap; isTurnComplete: boolean.
getTurn(turnCount: number)	Promise<TurnHistoryEntry | null>	Get turn history entry for a specific turn, or null if it doesn't exist.
getPreviousTurn()	Promise<TurnHistoryEntry | null>	Get the previous turn's history entry (same data as previous turn variables) or null.
getUser(index: number)	Promise<SnapchatUser | null>	Returns the Snapchat user for the provided index; returns null for the current user. Can be used to load Bitmoji. Promise rejects on load error.
getUserVariable(userIndex: number, key: string)	UserDefinedGameVariable | undefined	Get a per-session variable for a specific user.
setUserVariable(userIndex: number, key: string, value: UserDefinedGameVariable)	void	Set a per-session variable for a specific user.
getGlobalVariable(key: string)	UserDefinedGameVariable | undefined	Get a per-session variable for the entire game session.
setGlobalVariable(key: string, value: UserDefinedGameVariable)	void	Set a per-session variable for the entire game session.

Object/array variables If a turn variable is an object or array, call setCurrentTurnVariable after mutating it to ensure changes are saved. For example:

turnBased.getCurrentTurnVariable('throw_data').force = 100; // may not be saved
// correct usage:
const throwData = turnBased.getCurrentTurnVariable('throw_data');
throwData.force = 100;
turnBased.setCurrentTurnVariable('throw_data', throwData);

User loading getUser(index: number) returns null for the current user and rejects the promise if a load error occurs.

Events

Event	Type	Description
onTurnStart	Event<>	Fired when prompt data has loaded and the turn starts. Callback provides: currentUserIndex: number (0 or 1), tappedKey: string, turnCount: number, previousTurnVariables: IUserDefinedGameVariablesMap.
onTurnEnd	Event<>	Fired when endTurn is called and it's not the last turn (if requireTurnSubmission is enabled).
onGameOver	Event<>	Fired when endTurn is called and it's the last turn (if requireTurnSubmission is enabled).
onError	Event<>	Fired if an error occurs. Callback provides: code: string (INCOMPLETE_TURN_DATA_SENT, INCOMPLETE_TURN_DATA_RECEIVED), description: string.

---

Usage Example

LoadOtherUserBitmoji

Loads the other user's Bitmoji avatar using the Bitmoji 3D component. Ensure the "Auto Download" option is disabled on Bitmoji 3D.

TypeScript

@component
export class LoadOtherUserBitmoji extends BaseScriptComponent {
  @input('Component.ScriptComponent')
  turnBased: TurnBased;

  @input('Component.ScriptComponent')
  bitmojiComponent: ScriptComponent & {
    downloadAvatarForUser: (user: SnapchatUser) => void;
  };

  onAwake() {
    this.createEvent('OnStartEvent').bind(() => {
      this.loadAvatarForOtherUser().catch((e) =>
        print('Error loading avatar for other player: ' + e)
      );
    });
  }

  private async loadAvatarForOtherUser(): Promise<void> {
    const turnCount = await this.turnBased.getTurnCount();
    // We can only load the avatar for the other user if there is at least one turn
    if (turnCount > 0) {
      // Get the index of the current user and the other user
      const currentUserIndex = await this.turnBased.getCurrentUserIndex();
      const otherUserIndex = currentUserIndex === 0 ? 1 : 0;

      // Retrieve the other user by index
      const otherUser = await this.turnBased.getUser(otherUserIndex);
      if (otherUser) {
        // Download the avatar for the other user
        this.bitmojiComponent.downloadAvatarForUser(otherUser);
      }
    }
  }
}

JavaScript

//@input Component.ScriptComponent turnBased
//@input Component.ScriptComponent bitmojiComponent

const onStart = script.createEvent('OnStartEvent');
onStart.bind(async () => {
  loadAvatarForOtherUser().catch((e) =>
    print('Error loading avatar for other player: ' + e)
  );
});

async function loadAvatarForOtherUser() {
  const turnCount = await script.turnBased.getTurnCount();
  // We can only load the avatar for the other user if there is at least one turn
  if (turnCount > 0) {
    // Get the index of the current user and the other user
    const currentUserIndex = await script.turnBased.getCurrentUserIndex();
    const otherUserIndex = currentUserIndex === 0 ? 1 : 0;

    // Retrieve the other user by index
    const otherUser = await script.turnBased.getUser(otherUserIndex);
    if (otherUser) {
      // Download the avatar for the other user
      script.bitmojiComponent.downloadAvatarForUser(otherUser);
    }
  }
}

Debugging and Testing

Debug Modes

Debug settings only work in Lens Studio editor and have no effect in published lenses.

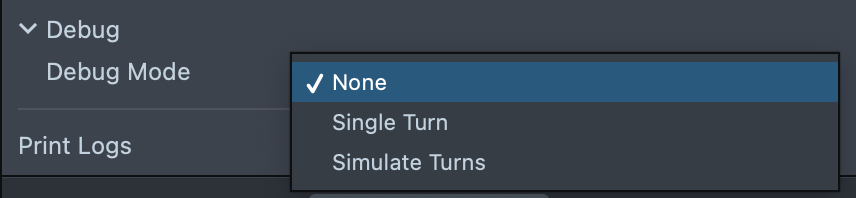

The component provides three debug modes for testing:

• None – Normal operation (use in production)
• Single Turn – Test specific turn scenarios in editor
• Simulate Turns – Full turn sequence simulation in editor

Simulate Turns in Lens Studio

When debugMode is set to Simulate Turns, the Turn Based Component simulates a full game loop in Lens Studio using persistent editor memory. This allows you to test turn-by-turn logic without publishing or sending real Snaps.

Each time the Snap Capture button is pressed in the preview:

1. Current Turn is Serialized The current session data is saved internally as if a Snap was sent:

• All data set with setCurrentTurnVariable()
• Any updates to setGlobalVariable() or setUserVariable()

This mimics sending a Snap to the other player.

2. Turn Advances After capturing:

• Close the Snap preview (tap the X in the upper left corner)
  Required for Lens Studio 5.13 and earlier Turn progression only occurs after a manual preview reset.

3. Role Swaps The user role alternates automatically:

• Even turns: User 1
• Odd turns: User 2

Scene elements like user1SceneObjects and user2SceneObjects will toggle accordingly.

4. Variable Propagation

Data flows forward between turns as follows:

• Global Variables and User Variables are persisted automatically across all turns
• Use getGlobalVariable() and getUserVariable(index) to confirm expected state
• setTurnVariable() values → become getPreviousTurnVariables() on the next turn

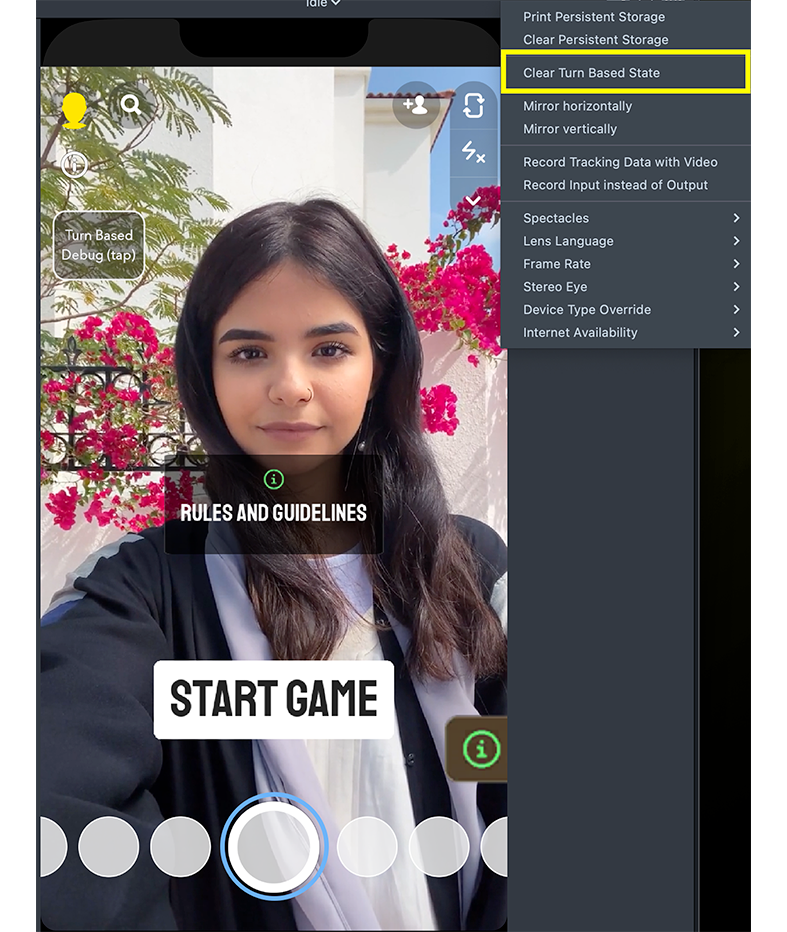

Preview Reset Required for Lens Studio 5.13 and below. You must reset the preview after capturing a Snap to advance to the next turn.

5. Reset Simulate Turn Count To reset the turn count to 0, open “Additional Options” (gear icon) in the upper right corner of the Preview Window and select “Clear Turn Based State”.

Best Practices

• Provide clear visual feedback for whose turn it is.
• When the turn is complete, prompt the user to take a Snap to send to the other user.
• Use Global Variables first to manage persistent game data.
• Include previous turn replay for complex games.

Error handling

• Always listen for onError events and provide user feedback.
• Use requireTurnSubmission for games requiring complete data.
• Validate game state before calling endTurn().

Previewing Your Lens

To preview your Turn Based Lens in Snapchat, follow the Pairing to Snapchat guide. Suggested testing flow:

1. Push the Lens to your device to test User 1
2. Take a Snap after making your first move
3. Send the Snap to yourself to simulate sending to User 2
4. Open the Snap to test User 2 and make the next move
5. Take another Snap and send it back to yourself to continue
6. Repeat steps 4–5 to exercise the full flow

During development, send Snaps to yourself; others won't be able to interact with your Lens while using push-to-device.

---

Publishing Your Lens

Turn Based functionality requires your Lens to be published as Public. Hidden or Offline Lenses cannot properly share turn data between users, which will cause the turn-based gameplay to fail.

---

Related

• Turn Based Player Info – Load and display specific players' Bitmoji and display names in a Turn Based session.
